Since 1949 the McDonnell Helicopter Engineering Division had attempted to develop a rotor system capable of high-speed operation. Such a system driven by tip-mounted pressure jets had been successfully tested on the XV-1 convertiplane and its use as a pure helicopter rotor was thought to offer many significant advantages, including (1) inherent angle of attack stability; (2) increased inherent pitch and roll damping; (3) greatly improved dynamic helicopter stability; (4) ability to start and stop in high winds; (5) no need for tracking and no dampers required; (6) no possibility of mechanical instability or ground resonance; (7) very low vibration; (8) low maintenance due to absence of highly loaded bearings, reduction gears, shafting, and anti-torque rotor; and (9) automatic rotor speed control. Accordingly, McDonnell decided in December 1956 to undertake as a private venture the design, development, and testing of a small single-seat crane helicopter using the XV-1 rotor. |
 |
McDonnell 120 'Flying Crane' Military designation: V-1 Engines: 3x AiResearch GTC-85-135 gas-turbine compressors with blade-tip pressure jets First flight: 13 November 1957 The Model 120 helicopter was of simple design, with the pilot seated centrally and the fuel tanks mounted on each side of the upper fuselage beneath the rotor head. Three AiResearch GTC-85-135 gas-turbine compressors, which fed pressure jets at the tips of the three-blade rotor, were located below and behind the rotor head (the jet-tip helicopter had been a McDonnell dream since the '40s, with many different designs along the way). A wide-spaced skid undercarriage enabled large loads to be slung beneath the centre of gravity, or specialized pods to be fitted to carry up to 12 troops, firefighting equipment, or cargo containers. The wide-spaced skids straddled special quick-change cargo pods — it had excellent cargo capacity, with a maximum load-to-weight ratio of 1.5:1. The mock-up of the Model 120, which was designed by a team led by Project Engineer Lloyd R. Novak, was completed in January 1957, and the first (N6081V) of two prototypes was flown on 13 November of that year by John R. Noll. Although the Model 120 was a Navy project (being evaluated as a ship-to-shore flying crane for the U.S. Marine Corps), photos exist which tend to prove that the aircraft was also evaluated by the Army, perhaps on loan from the Navy. Even to this day, no one seems aware of Army participation despite these photos. In spite of some powerplant teething problems, the Model 120 was judged "one of the most outstanding helicopters evaluated to-date in its weight class"' when flown at the Naval Air Test Center, NAS Patuxent River, in September 1959. Unfortunately, the Model 120 remained experimental as McDonnell failed to win either military or civil orders for this competent design. The Model 120 was extensively tested, then fell prey to the usual problems of tip-jets: noise and fuel consumption. The termination of this programme in February 1960 marked the end of McDonnell's independent efforts in this field as 13 months earlier the US Marine Corps had terminated the development of the XHCH-1 crane helicopter. McDonnell Douglas, however, came back to the helicopter field in 1984 with its acquisition of Hughes Helicopters, Inc. Population: 2, [including N6081V] Specs: Performance: Crew/passengers: 1 Main sources:- All the World's Rotorcraft (source: René Francillon) |

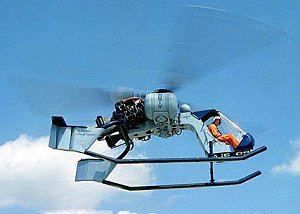

The Model 120 Flying Crane in its final configuration

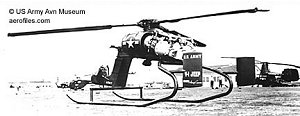

The Model 120 was evaluated by the Army as the V-1 'Jeep'.
